 产品类别:电流保险丝|熔断器|保险管 - 玻璃|陶瓷|引线式保险丝 |
| |
|
产品名称:电流保险丝6.35x31.75/6.35*31.7玻璃陶瓷管 |
产品编号:500mA,630mA,750mA,800mA,1A,1.2 |
产品简介:
特性
高分断能力,加强分断能力, 低分断能力可供选择；直接焊接或可插拔式; 国际认证; 世界范围内可使用.
应用
电信产品; 机器; 机车; 灯饰; 仪器; 家用电器;游戏设备; 电源设备； |
|

产品型号： 61TM，62TM 6.35φ×32
产品名称： 玻璃保险丝管（速断型）
产品详细描述： 产品型号：
PRODUCT TYPE：
61TM，62TM 6.35φ×32

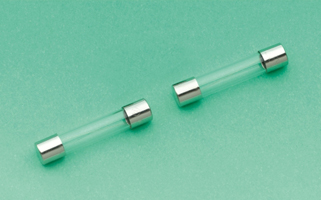

玻璃保险丝管（速断型）GLASS TUBE FUSE（FAST-BLOW）
UL:100mA～10A 250V/125V
CUL:100mA～10A 250V/125V
分断电流：
INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
电气特性：
ELECTRICAL CHARACTERISTICS：
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 5 sec Max(小于5秒)
|
 61T，62T 6.35φ×32
产品名称： 玻璃保险丝管（延时型)
产品详细描述： 产品型号：
PRODUCT TYPE：
61T，62T 6.35φ×32

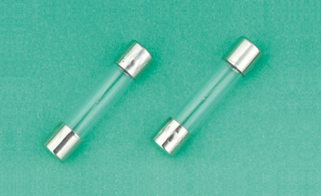

玻璃保险丝管（延时型）GLASS TUBE FUSE（SLOW-BLOW）
认证 APPROVALS
UL:100mA～1A 125V
CUL:100mA～1A 125V
UL:100mA～10A 250V
CUL:100mA～10A 250V
分断电流：
INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
电气特性：
ELECTRICAL CHARACTERISTICS：
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒)
|
|
产品型号： 61DT，62DT 6.35φ×32
产品名称： 玻璃保险丝管（中等延时型
产品详细描述： 产品型号：
PRODUCT TYPE：
61DT，62DT 6.35φ×32
玻璃保险丝管（中等延时型）GLASS TUBE FUSE（MEDIUM SKIW-BLOW）
认证 APPROVALS
UL:100mA～1A 125V
CUL:100mA～1A 125V
UL:100mA～10A 250V
CUL:100mA～10A 250V
分断电流：
INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
电气特性：
ELECTRICAL CHARACTERISTICS：
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒) |
|
ATE(P)* 500mA-8A/250V/慢断 玻璃 UL/CSA/PSE Y
AFE(P)* 10mA-30A/250V/快断 玻璃 UR/UL/CSA/PSE Y
ADL(P)* 200mA-10A/250V/慢断 玻璃 UL/CSA/PSE Y
ADA(P)* 100mA-20A/250V/慢断 陶瓷 UR/UL/CSA/PSE Y
ABE(P)* 10mA-25A/250V/快断 陶瓷 UR/UL/CSA/PSE Y
MDC(P)* 100mA-15A/125/250V/慢断 玻璃 UR/UL/CSA/PSE Y
MGC(P)* 100mA-15A/125/250V/快断 玻璃 UR/UL/CSA/PSE Y
----- ---- ---- ---- --- ----
备注: 1. (P): 带帽引线
6.35 x 30mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA, 500mA,630mA,750mA,800mA,1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V, Fast Acting, Cartridge Glass Tube Fuse with Pigtail, PSE Approved
6.35 x 30mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,
300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA,1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V, Time Lag, Cartridge Glass Tube Fuse, PSE Approved
6.35 x 31.75mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V,Fast Acting, Cartridge Glass Tube Fuse, UL/CSA/PSE Approved
6.35 x 31.75mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A) 125V/250V, Cartridge Glass Tube Fuse, UL/CSA/PSE Approved
6.35 x 31.75mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A,20A,25A,30A)125V/250V, Fast Acting, Cartridge Ceramic Tube Fuse with pigtail, UL/CSA/PSE Approved
6.35 x 31.75mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A,20A,25A,30A)125V/250V, Time Lag, Cartridge Ceramic Tube Fuse with pigtail, UL/CSA/PSE Approved
| |
|
|
|
|
|
|
